Passadena Pro

Technical Specification For Fully Automatic Single Phase Voltage Regulator


Elco Certified ISO 9001:2015, ISO 14001:2015
And OHSAS 18001:2007

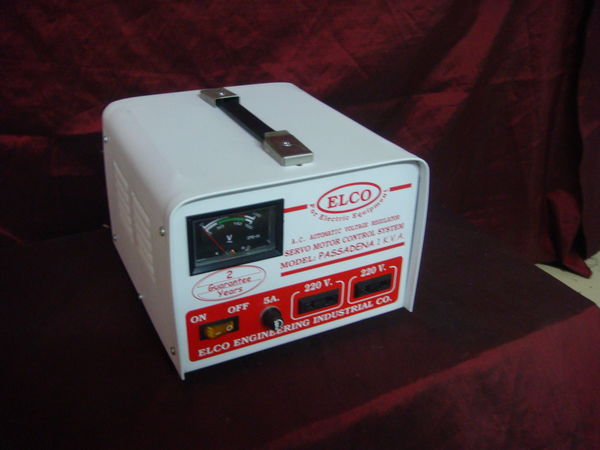

1 KVA

    1. Rated power                          1 K.V.A.
    2. Input nominal voltage              220 Volt.
    3. Input voltage range                  nominal value ( -41 %: + 21 %) (130 V:  265 V).
    4. Output voltage                         220 V (± 2 %).
    5. Full Protection
                               Over Load & Short Circuit Protection , By Circuit Breaker.
    6. We design regulator using variac ans booster unit to get same power on full regulating voltage range.
    7. We can do any specification as our client request.

1.5 KVA

    1. Rated power                          1.5 K.V.A.
    2. Input nominal voltage              220 Volt.
    3. Input voltage range                  nominal value ( -41 %: + 21 %) (130 V:  265 V).
    4. Output voltage                         220 V (± 2 %).
    5. Full Protection
                               Over Load & Short Circuit Protection , By Circuit Breaker.
    6. We design regulator using variac ans booster unit to get same power on full regulating voltage range.
    7. We can do any specification as our client request.

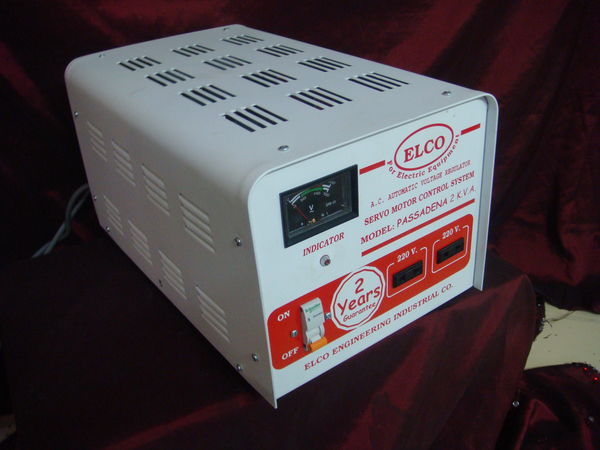

2 KVA

    1. Rated power                          2 K.V.A.
    2. Input nominal voltage              220 Volt.
    3. Input voltage range                  nominal value ( -41 %: + 21 %) (130 V:  265 V).
    4. Output voltage                         220 V (± 2 %).
    5. Full Protection
                               Over Load & Short Circuit Protection , By Circuit Breaker.
    6. We design regulator using variac ans booster unit to get same power on full regulating voltage range.
    7. We can do any specification as our client request.

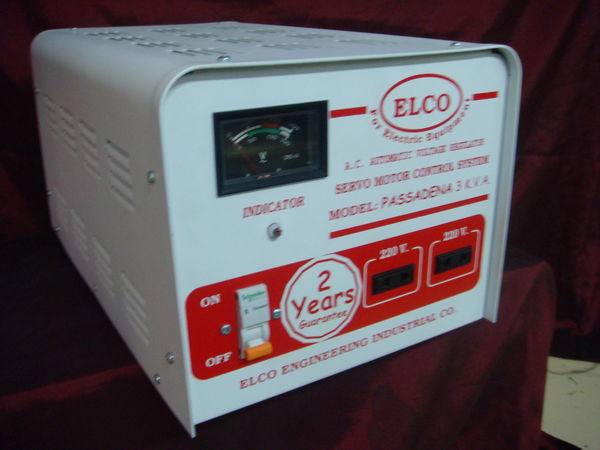

3 KVA

    1. Rated power                          3 K.V.A.
    2. Input nominal voltage              220 Volt.
    3. Input voltage range                  nominal value ( -41 %: + 21 %) (130 V:  265 V).
    4. Output voltage                         220 V (± 2 %).
    5. Full Protection
                               Over Load & Short Circuit Protection , By Circuit Breaker.
    6. We design regulator using variac ans booster unit to get same power on full regulating voltage range.
    7. We can do any specification as our client request.

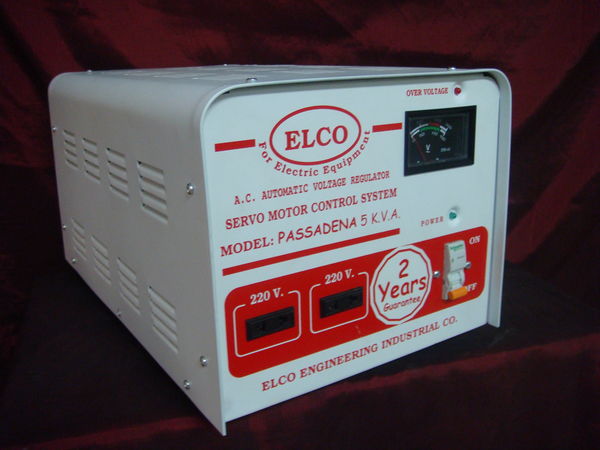

5 KVA

    1. Rated power                          5 K.V.A.
    2. Input nominal voltage              220 Volt.
    3. Input voltage range                  nominal value ( -41 %: + 21 %) (130 V:  265 V).
    4. Output voltage                         220 V (± 2 %).
    5. Full Protection
                               Over Load & Short Circuit Protection , By Circuit Breaker.
    6. We design regulator using variac ans booster unit to get same power on full regulating voltage range.
    7. We can do any specification as our client request.

10 KVA

    1. Rated power                          10 K.V.A.
    2. Input nominal voltage              220 Volt.
    3. Input voltage range                  nominal value ( -41 %: + 21 %) (130 V:  265 V).
    4. Output voltage                         220 V (± 2 %).
    5. Full Protection
                               Over Load & Short Circuit Protection , By Circuit Breaker.
    6. We design regulator using variac ans booster unit to get same power on full regulating voltage range.
    7. We can do any specification as our client request.

15 KVA

    1. Rated power                         15 K.V.A.
    2. Input nominal voltage              220 Volt.
    3. Input voltage range                  nominal value ( -41 %: + 21 %) (130 V:  265 V).
    4. Output voltage                         220 V (± 2 %).
    5. Full Protection
                               Over Load & Short Circuit Protection , By Circuit Breaker.
    6. We design regulator using variac ans booster unit to get same power on full regulating voltage range.
    7. We can do any specification as our client request.


20 KVA

    1. Rated power                         20 K.V.A.
    2. Input nominal voltage              220 Volt.
    3. Input voltage range                  nominal value ( -41 %: + 21 %) (130 V:  265 V).
    4. Output voltage                         220 V (± 2 %).
    5. Full Protection
                               Over Load & Short Circuit Protection , By Circuit Breaker.
    6. We design regulator using variac ans booster unit to get same power on full regulating voltage range.
    7. We can do any specification as our client request.

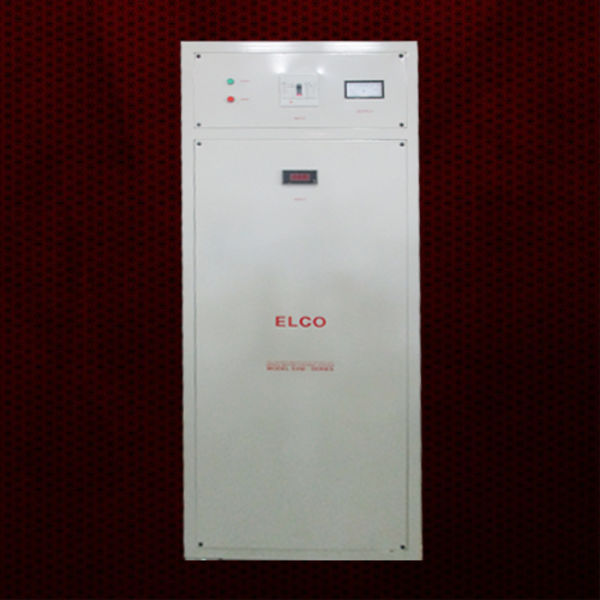

30 KVA

    1. Rated power                         30 K.V.A.
    2. Input nominal voltage              220 Volt.
    3. Input voltage range                  nominal value ( -41 %: + 21 %) (130 V:  265 V).
    4. Output voltage                         220 V (± 2 %).
    5. Full Protection
                               Over Load & Short Circuit Protection , By Circuit Breaker.
    6. We design regulator using variac ans booster unit to get same power on full regulating voltage range.
    7. We can do any specification as our client request.
